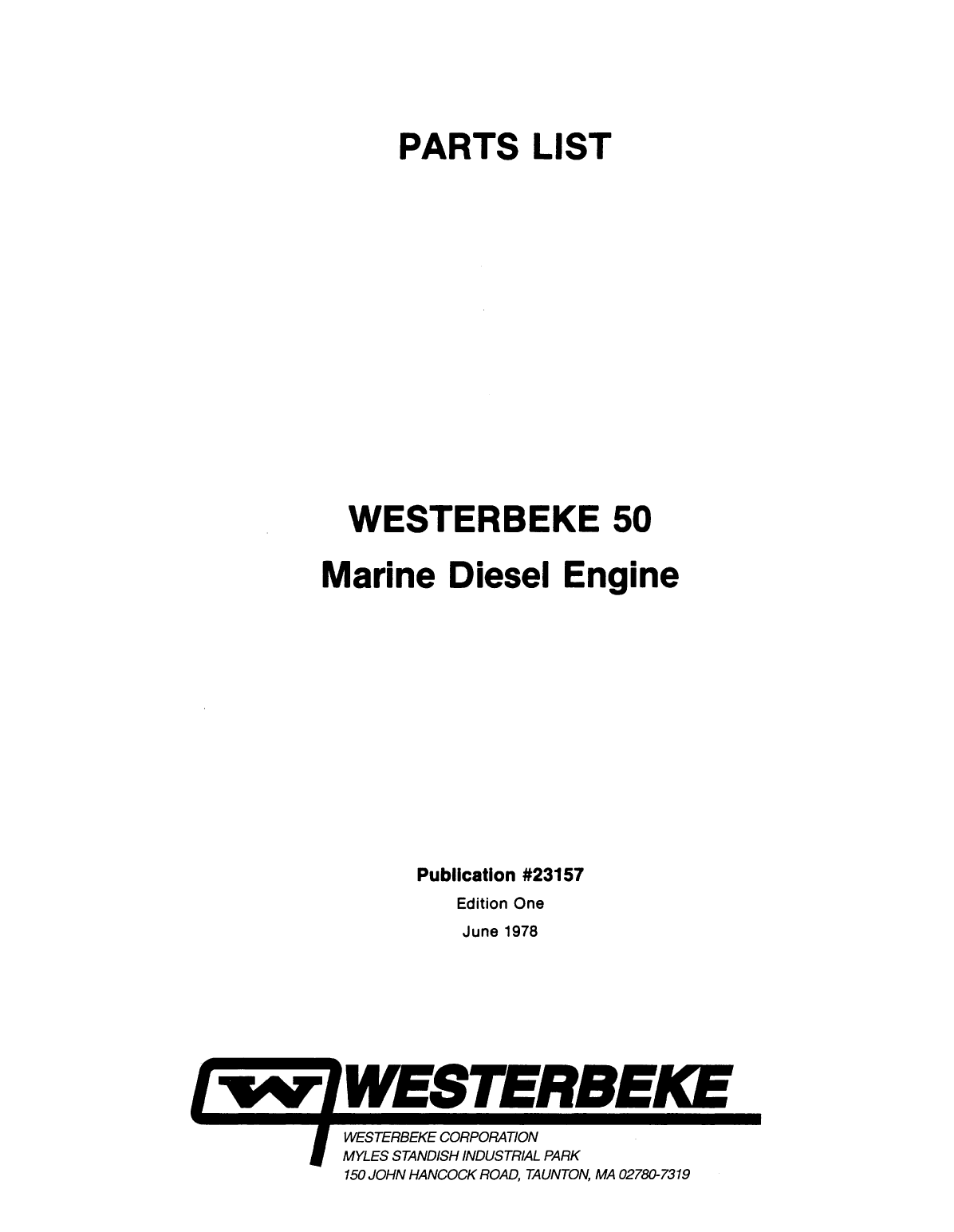

                PARTS LIST




         WESTERBEKE 50
        Marine Diesel Engine




                  Publication #23157
                       Edition One
                        June 1978




~r-.v- 'WESTERBEKE
    J    WESTERBEKECORPORATION
        MYLES STANDISH INDUSTRIAL PARK
         150 JOHN HANCOCK ROAD, TAUNTON, MA 02780-7319
                     NOTE

     The Westerbeke policy is one of continuous
improvement. and accordingly, the company reserves
the right to alter specifications. weights and
dimensions without prior notice.
     In compiling this Parts List. every care has
been taken. but specifications and details must
not be regarded as binding.
     Please, if you have a suggestion regarding
this book, or feel there is an error, send a
written note to the attention of Publications
Department.
     The unit of measure on linear commodities
is the INCH (not feet or yards). The code in
the quantity column "AR" indicates that quantity
varies. Therefore, order amounts As Required:
                  TABLE OF CONTENTS



200   Cylinder Block - Piston
202   Cylinder Head
204   Crankcase - Rod - Camshaft
206   Rocker Shaft
208   Timing Cover
210   Sump - Lube Oil Pump
212   Crankcase Breather
214   Fuel System
218   Fuel Pressure Switch - Water Separator
220   Cooling System
224   Sea Water Pump
226   Mounts
226   Photographs of Engine
228   Back End Arrangement
230   Electrical System
234   Short Profile Sailing Gear - Model 10
238   Type SAO Manual Transmission
242   Miscellaneous
       W~STERBEK~   50 - CYLINDER BLOCK - PISTON




                          2




                                                   26   27




2(Hl
                      WESTER8EKE 5C - CYLINDER BLOCK - PISTON

REF        PN                      REMARKS                                QUAN

  1        19404      ENGINE       ASSEMBLY                                     1
  2- 1     23270      BLOCK        SHORT 7388/0101 THRU 0459                    1
  2-   2   24 (}4 5   BLOCK        SHORT 738B/D~60 ON                           1
  4        2:3222     PLUG         CORE                                         2
  5        23265      PLUG         OIL GALLERY                                  6
  6        23266      PLl:IG       TAPER-OIL HOLE                               1
  7        14595      PLUG         TAPER-OIL HOLE                               1
  8        15481      PLUr,        DRILLING TO CAMSHAFT BEARIN6                 1
  9        1~561      PLUG         OIL RELIEF VALVE VENT HOLE                   2
 1Q        14553      PLUG         WtLCH                                     3
 11        14482      STUD         CYLINDER HEAD-SHORT                      10
12         14558      STUD         OIL PUMP-NLA
1:3        23264      STUD         FUEL PUMP                                 2
14         23263      8 OL T       PLACE MAIN BEARING                       10
15-    1   14606      LINER        CAMSHAFT BEARING 7388/0101 THRU 0459      1
15-    2   24046      LINER        CAMSHAFT BEARING 738B/D~60 ON                1
16-    1   232;2      ADAPTER      OIL FILTER 7388/0101 THRU 0459               1
16-    2   24047      ADAPTER      OIL FILTER 738B/D460 ON                      1
17         17961      GASKET       MAIN BEARING END CAP                         2
18         14437      DOWEL        BACKPLATE LOCATING                           2
19         14649      PLUG         CYLINDER DRAIN                               1
 20        14453      WASHER                                                    1
 21- 1     23223      PISTON       ASSEMBLY STANDARD                            4
 21- 2     232~C      PISTON       ASSEMBLY .020 OIS                       AR
 21- 3     23259      PISTON       ASSEMBLY .040 OIS                       AR
 22- 1     23258      RING SET     1 CYLINDER STANDARD                     AR
 22- 2     23257      RING SET     1 CYLINDER .020 OS                      AR
 22- :5    2:32C;6    RING SET     1 CYLINDER .040 as                      AR
 23        23255      PIN          PISTON                                       '+
 27        144~1      CIRCLIP                                                   4
 25        23254      LINER        CYLINDER                                     '+
 26        23189      GASKET       CYLINDER   SIDE COVER-REAR-CORK              1
 27        23:362     COVER        CLINDER   SIDE-REAR                         1
 28        14563      8 USH I NG   RUBBER                                       1
 29        1456~      WASHER       CUP                                          1
 30- 1     23190      COVER        CYLINDER   SIDE COVER-FRONT                  1
 30- 2     14562      r.ASKET      CYLINDER   SIDE COVER-FRONT-RUBBER           1




                                                                          201
      WESTERBEKE !SO - CYLINDER HEAD




                   11 0.-- 23

                  0 - 21




                                       1




202
                         WESTERBEKE 50 - CYLINDER HEAD

REF      P"J      NAME          RE~APKS                                 QUAN

  1- 1   23223    HEAD          ASSEMBLY-CYLINDER 7388/0101 THRU D459         1
  1- 2   24048    HEAD          ASSEMBLY-CYLINDER 7388/0460 ON                1
  2      14447    GUIDE         VALVE                                         8
  3      14595    PLUG                                                        5
  4      23998    PLUG         CORE                                           1
  5      14500    PLUG         CORE                                           7
  6      145'\3   PLUG         CORE                                           :3
  1      14552    PLUG         OIL HOLE                                       1
  8      23221    PLUG         CORE                                           2
  9      23220    INSERT       COMBUSTION CHAMBER                             4
 111     23219    INSERT       VALVE SEAT-INTAKE                              4
 11      23218    INSERT       VALVE SEAT-EXHAUST                             4
 12      14556    STUD         ROCKER BRACKET-SHORT                           2
 13      14559    STUD         ROCKER BRACKET-LONG                            2
 14- 1   23995    STUD         THERMOSTAT HOUSING                             :3
 14- 2   144'+0   WASHER                                                      :3
 14- 3   14441    NUT                                                         :3
 15      14631    STUD         EXHAUST MANIFOLD                               2
 16      23217    STUD         MANIFOLDS                                      4
 17      146D7    STUD         INJECTOR HOLDER                                8
 18      23216    VALVE        INTAKE                                         4
 19      23215    VALVE        EXHAUST                                        4
 20      23214    SPRING       VALVE                                          8
 21      '3213    COLLAR       VALVE SPRING                                   8
 22      17729    SEAL         VALVE STEM OIL                                 4
 23      20716    COTTER                                                      8
 24      23212    CUP           VALVE SPRING                                  8
 25      1457e    PLUG                                                     2
 26      14445    NUT           CYLINDER HEAD STUD                        11
 27      14511    NUT           PILLAR                                        :3
 28      23211    WASHER                                                  14
 29      23210    GASKET        HEAD                                       1
 30      14529    PLUG          GLOW                                       4
 31      14494    WIRE          GLOW PLUG                                  3
 32      15760    HOUSING       THERMOSTAT                                 1
 33      145Ql    GASKET        THERMOSTAT HOUSING                            1
 34      1792.   THERMOSTAT    180F                                          1
 35      11471    PETCOCK                                                     1
 36      11752    PLUG                                                        2




                                                                        2D3
                WESTr~8EKE   50 - CRANKCASE - ROO - CAMSHAFT




                                                        ~4036
                                     30
                                                   ~      ,,,O~,
                                                            i~
                                                   I
                                                              I ~42
                                          34          @ /                     41
                                                   37 1
                                                       ""/
                                                           39      I
                                                                   11\"..;5
                                                     38       35       '.
                                                                   44--a           ~j
                                                                                    43




                                               7



      46   4S                       8---!\
                                     9--\D 6

204
                     WESTERBEKE 50 - CRANKCASE - ROD - CAMSHAFT


REF         PN       NAME         REMARKS                         QUAN

  1         23253    ROD          CONNECTING,ASSEMBlY                   4
  2         144'+8   BUSHING                                            4
  ~
  ..J       23252    CAPSCREW     CONNECTING ROD                        8
  4         23251    NUT                                                8
  5         23248    CRANKSHAFT   ASSEMBLY                              1
  6- 1      23250    BEARING      CONNECTING ROD-STD-SET                1
  6- 2      23249    BEARING      CON r~ E CTI NG ROD-Ot O-SET          1
  1-    1   23244    ~EARING      MAIN-STD-SET                          1
  1-    2   23243    BEARlr--!G   MAIN-010-SET                          1
  8- 1      23242    WASHE~       THRUST-UPPER-STD                      2
  8- 2      23241    WASHER       THRUST-UPPER-OIO                      2
  9- 1      2324 C   WASHr::R     THPUST-LOWER-STD                      2
  9- 2      23239    WASHER       THRUST-lOWER-OlD                      2
 10         23241    BUSHING      CRANKSHAFT                            1
 11         2324r; eUSHH!G                                              1
 12         23245 DOWEL                                                 1
 13         14415 GEAR            CRANKSHAFT                            1
 14         23237 KEY                                                   2
 15         14654 SPACER          GEAR                             AR
 16         14598 SLINGER         CRANKSHAFT-FRONT                      1
 17         23148 PUllEY          CRANKSHAFT                            1
 18         23235 BOL T           PUllEY TO CRANKSHAFT                  1
 19         14574 TABWASHER                                             1
 20         23233 DAMPER          VIBRATION                             1
 21-    1   23232 CAMSHAFT        1388/0101 THRU     D4~O               1
 21-    2   24049 CAMSHAFT        138B/D460 ON                          1
 22         14589 PLATE           CAMSHAFT lOCATING                     1
 23         14449 GEAR            CAMSHAFT                              1
 24         1'+531 KEY            CAMSHAFT GEAR                         1
 25         14549 NUT             CAMSHAFT GEAR RETAINING               1
 26         14541+   TA8lJASHER                                         1
 27         23231 GEAR            IDLER                                 1
 28         2323 C . CHAIN        TIMING                                1
 29         23229 TE"JSIONER      CHAIN                                 1
 30         23228 SHOE            CHAIN TENSIONER                       1
 31         23221 PIN             STOP-TENSIONER                        1
 32         2322~    CIRClIP      SHOE TO PIN                           1
 33-    1   15302 TAPPET          STD                                   8
 33-    2   1",303 TAPPET         010                                   8
 33-    3   23225 TAPPET          020                                   8
 34         23221+ PUSHROD                                              8
 45         22324 PULLEY          DRIVE SEA WATER PUMP                  1
 46                  CAPSCREIII   5/16NF X 3/4 LG                       4
 I+b        23991 HUB             IDLER GEAR                            1




                                                                  205
                WESTERBEKE 50 - ROCKER   S~AFT




                                         ~19
                                         ~18
                                             17




       ~
      20

           14   I

                L,~        ___
           16~


      12~                                        2




                3
                                         13~




206
                         WESTERBEKE 51} - ROCKER SHAFT

REF      p~       NAME         REMARKS                   QUAN

  1      14438    SHAFT        VALVE ROCKER                    1
  2      14547    BRACKET      ROCKER SHAFT-TAPPED             1
  3      14456    BRACK'=T     ROCKER SHAFT-PLAIN              :3
  4      14551    SPRING       ROCKER SHAFT                    :3
  5      1460~    ROCKER       ASSEMBLY                        8
  6      14612    BUSHING      ROCKER                          8
  1      146-25   RIVET        ROCKER                          8
  8      232~8    SCREW        TAPP~T ADJUSTING                8
         14416    NUT          LOCKING
  "
 10      14481    SCREW        ROCKER SHAFT LOCATING
                                                               8
                                                               1
 11      14483    PLATE        LOCKING                         1
12       14605    WASHER       DOUBLE COIL SPRING              2
13       23201    SHIM         CENTER ROCKER BRACKET           2
14       14lt19   COVER        ROCKER-VALVE                    1
15       17935    CAP          OIL FILL                        1
16       14436    GASKET       ROCKER COVER                    1
 17      1ltA08   GROMMET                                      2
 18      14809    WASHER       CUP-ROCKER COVER                2
 19      1lt801   BUT          CAP                             2
 20- 1   15299    EYE          LIFTING                         2
 20- 2   146lt7   SPACER       WHEN EYE IS REMOVED             2




                                                         207
           WESTERBE'KE 5Q - TIMING   COVE~




                  11




                                             8


      /1
      \~/


                        "---,
                   -~---'




208
                      WESTERBEKE 5C - TIMPJ6 COVEP

REF   pr-.J    NAME         REM . . RKS                   QUAN

  1   23197    COVER        FRONT-ASSEMBLY                      1
  2   14~4~    SEAL         OIL-FRONT COVER                     1
  3   2319~    GA SK ET     COVER TO PLATE                      1
  4   23195    O-RING       COVER TO PLATE BOLT                 1
  5   23194    PLATE        FRONT                               1
  6   2319:!   PIN          TENSIONER SHOE PIVOT                1
  7   23192    BOLT         FUEL INJECTION PUMP AND HUB         '1:
                                                                o.J


  8   23191    GASKET       PLATE TO BLOCK                      1
      19210    ALTERNATOR   551\ 12VDC                          1
  "
 10
 11
      11125
      11548
               STRAP
               PULLEY
                            ALTERNATOR ADJUSTING
                            ALTERt-.JATOR
                                                                1
                                                                1
 12   22919    BRACKET      ALTERNATOR SUPPORT                  1




                                                          209
                 WESTERBEKE 50 - SUMP - LUBE OIL PUMP




                                                3-i
                                                2~

                              8




                                           ~5


           14
                         15




      11


      ~     12




210
                         WESTERBEKE 50 - SUMP - LUBE OIL PUMP

REF         PN        IIJA~E       RE"'ARKS                             QUAN
  1         2320~     PU"'P        LUBE OIL                                1
  2- 1      ~3205     GASKET       PU"'P TO CRANKCASE                      1
  2- 2      14440     IIASI-tER    FLAT                                    3
  2- 3      14497     WASI-IER     LOCK                                    :5
  3         23204     SHAFT        OIL PUMP DRIVING                        1
  4         14588     SToRA INER   OIL PICKUP                              1
  5         1452~     GASKET       STR4INER TO OIL PUMP                    1
  6         1'+550    VALVE        OIL RELIEF                              1
  7         2320~     SPRING       OIL RELIEF VALVE                        1
  8         23202     NUT          CAP-OIL RELIEF VALVE                    1
  9         14~28     WASHER       COPPER                                  1
 l~         231C:O    SUMP         LUBE OIL                                1
 11-   1    154(,~    PLUG         DRAIN                                   1
 11-   2    1 ~4 7S   ELBOW                                                1
 11-   :5   22927     HOSE         LUBE OIL SUCTION-INCHES   REQUI~ED     24
 11-   '+   22929     ADAPTER      HOSE TO ELBOW                           1
 11-   5    12262     CLAMP        HOSE SUPPOR T                           2
 11-   :,   13736     CLAMP        HOSE SUPPORT                            2
 12         14541     WASHER       DRAIN PLUG                              1
 13         232~O     GA SK EoT    SUMP                                    1
 14         23199     DIPSTICK                                             1
 15         23198     TUBE         DIPSTICK                                1
 16         14517     WASHER       SUMP TO ElLOCt(                        18




                                                                        211
      WESTEPBEKE 50 - CRANKCASE BREATHER




212
                    WESTERBEKE 50 - CRANKCASE BR EA THER

REF    PN       ~!AME        P EMA RKS                     QUAN

  1    2153~    SILENCER     AIR INTAKE                          1
  2    13335    EL81)W                                           1
  :3   16353    TU~ING                                      AR
  4    11775    HOSE         1/2 10                          16
  5    17298    CLAMP        HOSE                             2
  ~    23362    BREATHER                                      1
  1    23189    GASKET                                        1
  8    1'4563   BUSHING      RUBB ER
                                                                 ...
  9    14564    WASHER       CAP                                 1
 10             CAPS CREW    5/16 UNF X 2-1/'+ LG                1




                                                           213
 f\)
~
..,..




                                                9
                                                       fdj
                                                      14 13




                                                               4




                                                                   53                  -=
                                                                                      r>J
                                                                                      (/)
                                                                                      -i
                                                                                   1'1
                                                                                   ;0
                                                                                   (D
                                                                                r>J
                                                                                :lIi:
                                                                                1"'1

                                                                               '-II
                                                                               0;;)




                                                26 ~.
                                                                          C
                                                                          r>J
                                                                              ""
                                                                         r-

                                         ~~~~',
                                                                         (I)
                                         I"'~  ".                       -<


                                            .
                                     c::J~ , - ,
                                                                        (I)
                                                                        -i
                                                                        f'1
                                        .           ',,-   ~            ~




                             I



        t
             ! 48
        "~''''.   .      I




                                 ~
                  {;),
            ..'
                              WESTERBEKE 5C - FUEL SYSTEM

REF                 NAME            RE1'4ARKS                      QUAN

  1- 1   23182      INJECTOR       ASSEMBLY                              4
  1- 2   23181      IIJOZZLf.      INJECTOR                              4
  2      11943      WASHER         BANJO                                 8
  3      11935      BeLT           BANJO                                 4
  4      23844      LINE           INJECTOR RETURN                       1
  5      14490      W~S~ER         INJECTOR TO HEAT SHIELD-THICK         4
  6      144~ 4     WAS~ER         INJECTOR SEALING-STEEL                '+
  7      144j::2    S~IELD         HEAT                                  4
  8      144'::'3   WASHER         HEAT SHIELD TO HEAD                   '+
  9      117q3      TUEING         BUNDY                            AR
 10      11944      WASHER         BANJO                                 2
 11      14h~3      E OL T         BANJO                                 1
 12      1193~      BANJO                                                1
 13      13343      FERRULE         3/16 LINE                            2
 14      13344      1\iUT                                                2
 15      2D95{1     HOSE           FUEL RETURN                           1
 16      14771      FILTER         FUEL-COMPLETE                         1
 11      14716      ELEMENT        FUEL FILTER INCLUDING a-RINGS         1
 18      21918      O-RING         SEAL ELEMENT IN FILTER                2
 19- 1   14664      PLUG           FUEL FILTER PORT                      1
 19- 2   14541      \JAS~ER        PLUG                                  1
 2G                 BOLT           FILTER CENTER                         1
 21      14f~2      VALVE          CHECK                                 1
 22      21739      BRACKET        FILTER MOUNTING                       1
 2~      23919      BRACKET        CIRCUIT BREAKER MOUNT                 1
 24      23921      lINE           FILTER TO INJECTION PUMP              1
 25      23922      LINE           INJECTION PUMP TO FILTER              1
 26      23920      C LA M P       FUEL LINE                             2
 21      19321      O-R I NG                                             1
 28      11615      PLUG                                                 1
 29      19320      O-R I NG                                             1
 3(1     19442      WASHER         BANJO BOLT                            1
 31      19187      80lT           BANJO                                 1
 32      1918~      ADAPTER                                              1
 33      11383      SWITCH         FUEL PRESSURE                         1
 34      17149      GASKET         PUMP TO HUB                           1
 35      ?31a4      PLATE          DRIVING FLANGE LOCATING               1
 3E      23185      FLANGE         DRIVING                               1
 37      23186      GEAR           DRIVING                               1
 3&      23181      GASKET         HUB TO FRONT PLATE                    1
 39      23188      HUB            INJECTION PUMP                        1
 40      23999      LINE           OIL FROM CRANKCASE TO HUB             1
 41      23271      PUMP           INJECTION                             1
 42      13325      CLAMP                                                1
 43      13810      SHIM                                                 1
 44      23427      BRACKET         THROTTLE                             1
 45      13811      CLAMP                                                1
 46      11598      FILTER          PRIMARY FUEl-SEDIMENTER              1




                                                                   215
I\J
......
(7\




                                                                 9
                                                                         cpr
                                                                         14 13




                                       15
                                                                                                            1

                                  ~.
                                                                                                            53                                     ~
                                                                                                                                                      -=
                                 tf/                                                                                                               (/)
                                                                                                                                                   -f
                                                                                                                                                 f"Yl
                                                                                                                                                 ;0
                                                                                                                                                 co
                                                                                                                                                 ,.
                                                                                                                                               f"Yl

                                                                                                                                               f"Yl
                                                                                                                      34
                                                                                                                                35           'JI
                                                                                                                                            ::.>
                                                            '"
                                                            ~'"
                                                                                                                                            ."
                                                                                                                                         C
                                                                                                                                        f"Yl
                                                                 H~                                                                    r-
                                                                                                                                      (/)

                                                  ~~
                                                  ~'~~
                                                  I'"~ ..
                                                                                                                                     -<


                                                            .
                                                 -,~                 -                                                               (/)


                                                .-~!( ~"
                                                                                                                                     -f
                                                                         '"                                                          f"Yl
                                                                                                                                      ?:
                                                                 "




                                                                                                                           35

             ,                                                                                                   39
         -~".148
                                                                                 ~
         ~    #> ,           I
         ,           '       I
          ,  ,


                                            ~
             . .,..!," JJ.
                         ,                                                       Llf8EOI1..   _--or--..)-
                                                                                              ---1.--/
                           WESTERBEKE 50 - FUEL SYSTEM

REF       PN        NAME         REMARKS                       QUAN
 41- 1    20938     HOSE        FUEL SUPPLY 18 IN LONG-STD        1
 ,+1- 2   23909     HOSE        FUEL SUPPLY 26 IN LONG            1
 41- 3    22222     HOSE        FUEL SUPPLY 55 IN LONG            I
 48       14572     GASKET      LIFT PUMP TO BLOCK                1
 49- 1    1456(,    PUMP        FUEL LIFT                            1
 49- 2    14660     KI'T        FUEL LIFT PUMP REPAIR-MINOR          1
 49- 3    1'4(,61   KIT         FUEL LIFT PU~P REPAIR-MAJOR          1
 50       23279     LINE        LIFT PUMP TO FILTER
 51       11596     NUT         FOR REF 24,25 & 50                   5
 52       11597     FERRULE     FOR REF 24,25 & 50                   5
 53       2321~     LINE        INJECTOR 1 HYDRAULIC PUMP            1
 54       23274     LINE        INJECTOR 2 HYDRAULIC PUMP            1
 55       23275     LINE        INJECTOR 3 HYDRAULIC PU~P            1
 S(,      2327      LINE        r NJE CT OR 4 HYDRAULIC PUMP         1
 51- 1    23217     CLAMP       FUEL LINE                            4
57- 2     14493     BUSHING     FUEL LINE TO CLAMP                   4




                                                               217
      ~ESTERBEKE   ~n       - FUEL PRESSURE SWITCH - WATER SEPARATOR


                                                         FUlL INJECTION   PUMP.
                                                           (ON EN~INE)




                                       -------..


          /
                        Front Section View                     Side View

                   ~~_,.--
                    I   !
                    ,   I




                                                   Rear View of
                                                   Ring & Clamp Bracket
                    i----ID     ~ '-'---1.1


218
         WESTE'RBEKE 50 - FUEL PRESSURE SWITCH - WATER   SEPAR~TOR



REF      PN       NAME         RE'MARKS                              QUAN
  1      19204    SCREW        ASSEM8LY-BLEED                              1
  2      192~1    WASHER       COPPER                                      1
  :5     19185    ADAPTER                                                  1
  4      19321    O-RING                                                   1
  5      11515    PLUG                                                     1
  6      11383    SWITCH       FUEL PRESSURE                               1
  7.     19320    O-RING                                                   1
  e      19442    WASHER                                                   1
  9      19187    SCREW                                                    1
 2Q      22266    SEPARATOR    COP-1PLETE                                  1
 21      22800    LID                                                      1
 22      ~2275    (;ASKET      LID                                         1
 23      22258    ELEMENT                                                  1
 24      22801    TUPE         Rf"TURN                                     1
 25               SCREWS       10-32                                       4
 26      22802    BAFFLE       CONICAL                                     1
 27      22803    GASKET       C~ECK BALL                                  1
 28      22804    C~NTRIFU6E                                               1
 29      22522    PLUG         DRAIN 90WL                                  1
 30               PETCOCK      1/4                                         1
 31      22805    HANDLE'                                                  1
 32      22213    GASKET       NYLON                                       1
 33      :>2806   !-lOUSING                                                1
 34      22807    BRACKET      MOUNTING                                    1
 35      22808    CLAMP                                                    1
 36-     22276    GASKET       BOWL O-RING                                 1
 37      22809    RING         BOWL                                        1
 38      22810    BALL         CHECK                                       1
 39- 1   22271    BOWL                                                     1
 39- 2   22269    BOWL         WITH ALARM PROBES                           1
 40      22274    WASHER       BOWL DRAIN                                  1
 41      22272    SENSOR       KIT FOR ALARp.1                             1




                                                                     219
           t\)
           t\)
           Q




                                                             3 4
                       26
                            ~~

                                              1



                            29-f}
           /
           I




                                                                                                                                           ~
                                                                                                                                          rry
                                                                                                                                          CIl
                                                                                                                                         .....
                                                                                                                                        r.-,
                                                                                                                                        ;;u
                                    24                                                                                                  CD
                                                                                                                                      r.-,
                                                                                                                                      ~
                                                                                                                                    r.-,
                                                                                                                                    'JI
                                                                                                                                    o


                                                                                                                                (')
                                                                                                                                o
                                                                                                                                o
       ,                                                                                                                      r-
                                                                                                                              ~
                                                                                                                           ~
                                                                                                                           r"




       t::                                                                     45 -----..-.-'



                                                                           (r~44' t-~
                                                                                                                         CIl
                                                                                                                         --<
                                                                                                                        CIl
                                                                                                                        .....
                                                                                                                        rr:



~31 __
                                                                                                                        ~



                                    ~3        3                                                           -


<;         ,,~~
                                              2
                                                  4
                                                       C~J'   410) )

                                                       --~;.. ~
                                                                            41 42
                                                                                        -
                                                                                      /f)
                                                                                            J
                                                                                                ,,~.
                                                                                                         /-2
                                                                                                               9

 TOp
SUM
               .   \
                   29
                                         33
                                                  ~.S:::iJlleE
                                                      0''-         .
                                                                       .
                                                                                    /        ~:.-<.
                                                                                            :,-?
                                                                                                                   57
                                                                                                        43
                          W~~TERBEKE   50 - COOLING SYSTEM

REF       PN       NAME          RD~ARKS                              QUAN
  1       15784    ~ANIFOLD                                                 1
  2       13680    GASKET        SILENCER TO MANIFOLD                       1
  3       21536    SILENCER      AIR INTAKE                                 1
  4       13561    WAS~ER                                                   2
  5       1603'5   WINGNUT                                                  2
  6       13335    EI:.BOW       BREATHER LINE                              1
  1       11499    CAP           PRESSURE 4PSI                              1
  8       111~1    NECK          FILLER                                     1
  9       13329    ELBOW         WATER OVERFLOW                             1
 10       21498    HOSE          THERMOSTAT TO MANIFOLD                     1
 11       15160    HOUSING       THERMOSTAT                                 1
 12       11752    PLUG          THERMOSTAT HOUSING                    AR
 13       11411    PETCOCK                                                  2
 14       21818    CLAMP         HOSE-STAINLESS                             4
 15       13382    SWITCH        ALARM-WATER TEMPERATURE-OPTIONAL        1
 16       11859    GASKET        MANIFOLD TO HEAD                        1
 17       23178    PULLEY        FRESH WATER PUMP                        1
 18       23180    PUMP          FRESH '.lATER                           1
 19       17888    GASKET        FRESH WATER PUMP TO BLOCK               1
 20       13671    HOSE          EXCHANGER TO FRESH WATER PUMP           1
 21       19324    PLUG          UNUSED EXHAUST OUTLET IN MANIFOLD       1
 22       11500    TU8 I Nt;     WATER OVERFLOW-INCHES REQUIRED         10
 23       15799    EXCHANGER     HEAT                                       1
 24       231~9    CAP           RUBBER END FOR HEAT EXCHANGER              1
 25       11341    CLAMP         HOSE-STAINLESS                             6
 26       11517    HOSE          INCHES REQUIRED                       AR
 21       136~3    GASKET        EXCHANGER TO MANIFOLD                      2
 28       15985    EL80W         WATER INJECTED EXHAUST-90 DEGREE           1
 29       13519    NIPPLE        HOSE                                       '5
 30       23566    LINE          LUBE OIL COOLER TO CRANKCASE               1
 31       13330    ELBOW                                                    4
 32       11518    COOLER        LUBE OIL                                   1
 33       11885    ZINC                                                     2
 34       23918    BRACKET       OIL COOLER                                 1
 35       16655    ELEMENT       LUBE OIL FILTER                            1
 36       23561    LINE          BLOCK TO LUBE OIL FILTER                   1
 37       235~6    LINE          LUBE OIL FILTER TO COOLER                  1
 38       21690    ADAPTER       LUBE OIL FILTER                            1
 39       13610    NIPPLt:       ADAPTER TO ELEMENT                         1
 41)      13348    ADAPTER                                                  1
 41       24006    ADAPTER       BLOCK TO OIL PRESSURE SENDER ELBOW         1
 42       15122    ELBOW                                                    1
 43       11542    SENDER        OIL PRESSURE                               1
 '+4      13338    ELBOW                                                    2
 45       21511;   HOSE          WIRE INSERTED-INCHES REQUIRED          13
 46       13337    ELBOW                                                    1
 41       11830    PUMP          SEA   WATER                                1
 48- 1    11313    PULLEY        SEA   WATER PUMP                           1
 '+8- 2   13810    BELT          SEA   WATER PUMP DRIVING                   1
 49       12919    RRACKET       SEA   WATER PUMP MOUNTING                  1
 50       1"7926   THERMOSTAT                                               1




                                                                      221
N
1\)
N
                                                                                    7
                                     3   4
                                     I


      26
                   ~"'-.




                   ~
                    ~'t- ~';'?,}" ~~i'
                                                                                                              L":
                                                                                                              ~.                                  1-4

                                                                                                  47                                              z
                                                                                                                                                  G"I
                                                                                              /
                                                                                                                                                  (/)
                                                                                                                                                   -<
                                                                                                                                                  (/)

                                                                                                                                                  ,....
                                                                                                                                                   -i

                                                                                                                                                   .3:




      ~3:
                      31 ~_
                                                              40                                                         57

                   1--cr-            ~32 ;---~                                      J
      ~V
           ,_I.,                                      ___ - 'i::!\:.......-
                                                    \.....-~-
                                                       ~
                                                                 '.-.-~
                                                                        '~L--
                                             33     O\\..

                                                  G"':'L.~:....::~:    "
                                                                             :.--

                                                                                        43
       T~,p
      sUP'                      29
                         WESTERBEKE 50 - COOLING SYSTEM

REF       ~N      NAME          REMARKS                                   QUAf\J

 51       145Q1   GASKET        THERMOST AT HOUSING                             1
 52       23512   BUSHlf\J6                                                     1
 53- 1    23511   SENDER        WATER TEMPERATURE 1/8NPT                        1
 53 - 2   19369   PLUG          WHEN SENDER NOT INSTALLED                       1
 54       11552   SWITCH        ALARM-OIL PRESSURE-OPTIONAL                     1
 55       19369   PlUG                                                          4
 56       23427   BRACKET       Tt-lROTTLE CABLE                                1
 57       23913   ADAP TER      OIL FLOW                                        1
 58       29455   a-RING                                                        1
59- 1     23461   NIPPLE       OIL ADAPTER TO BLOCK 138B/D101 THRU D459         1
59- 2     24047   NIPP LE      OIL ADAPTER TO BLOCK 738B/D460 ON                1




                                                                          223
      WESTERBEKE 50 - SEA WATER PUMP




224
                            wrSTERBEKE   ~O   - SEA WATER PUMP

REF      PN          NAME          REMARKS                             QUAN
  1
  ,.
         18188       SCREW         COVER                                     6
        lAt83       COVER                                                   1
  3      18182       GASKET        COVER                                     1
  4      1818"       IMPELLER                                                1
  5      18186       CAM           INCLUOING WEAR PLATE                      1
  6      18191       O-RING                                                  1
  1      18193       SEAL          SH.AFT                                    1
  8      IP181       SLINGER                                                 1
  S      181'H       SEAL          BEARING-INNER                             1
 10      Ib18~       SHAFT                                                   1
 11      1P190       SNAPRING                                                1
 12      18189       SCREW         CAM                                       1
 14      1~192       SEAL          BEARING-OUTER                             1
 15- 1   11830       PUMP          CO~PLETE                                  1
 15- 2   1 '+ 7~ 8   KIT           I~PELLER     AND SEAL REPLACEMENT         1




                                                                       225
                            WE'STERBEKE 50 - MOUNTS

REF     PN       NAME          REMARKS                       QUAN

  1     21896    MOUNT         FRONT LEFT & RIGHT-STANDARD         2
  2     160'+0   MOUNT         REAR LEFT & RIGHT-STANDARD          2
  3     11687    ISOLATOR                                          '+
  '+    13'+7n   MOUNT         REAR LEFT ~IN ABOVE CENTER          1
  I':
  ..I   2355'+   MOUNT         REAR RIGHT 3IN ABOVE CENTER         1




                                                             227
      WESTERBEKE 50 - BACK END




                                                   -
                                                   CD




                                               -   M




                                 \


                                     \

                                     \ \ \     \


                                             L_~




                                 -
228
                             WfSTERBEKE 50 - BACK END

~EF      Pro.     NA~E          REMARKS                               QUAN
  1      ?3175    GASKET        BLoCK TO BACKPLATf                          1
  2      23174    GASKET        BLOCK TO BACKPLATE-UPPER                    1
  3      23177    BACKPLATE                                                 1
  1+     16519    SEAL          OIL                                         1
  5      23173    RET~INER      OIL SEAL TO BACKPLATE                       1
  6      23172    FLYWHEEL      WITH RING GEAR                              1
  7      13072    TABWASHER                                                 1
  8      18623    ADAPTER       DAMPER TO FLYWHEEL                          1
  9- 1   19398    DAMP ER       SHORT PROFILE SAILING GEAR                  1
  9- 2   11ge9    DAMPER        HYDRAULIC GEARS AND SAO MANUAL GEAR         1
 10      23779    CAPSCREW      SOCKET HEAD                                 5
 11      23147    DOWEL         HOUSING TO BACKPLATE                        2
 12      19422    HOUSING       FLYWHEEL                                    1
 13      23122    MOTOR         STARTER INCLUDING SOLENOID                  1
 14      1604 G   ~OUNT         REAR                                        2
 15      11687    ISOLATOR      REAR                                        2
 16      23942    SOLENOID      STARTER MOTOR                               1




                                                                      229
                                      ELECTRICAL SYSTEM-MARINE ENGINE-PUSHBUTTON START

                                                                                                                                     WIPI NG              DIAGRAM                                                                   I   WIRING    IN:'[liIIT    fOR


                                      ~jj,T~U~E!:!..T~~~~~F:!:!~!...C!.t2~[~                                                  ___ ...,
                                      I
                                      I
                                      I
                                      I
                                      I                                                                                                                                     5rR.!..~W-"~~~~~~;
                                      I
                                                                                                                                                                             ISTUT !W                    IIIII("[AT   $W'I
                                      I
                                      I                                                                                                                                      1-                               -I
                                      I                                                                                                                                      I                                  I
                                      I
                                      I
                                                                                                                                                                             L                                          J@
                                      I~
                                      L.. _ _ _ _




    JQWG 19201                                                                     ...
                                                                                                                         ,-                                                                         .-"
                                                                               ,-
                                                                                                                 .
                                                                                                                                                                                                     0
            A ... ,;   77                                             ,"   ~                ,!          .'E
                                                                                                                 "
                                                                                   ~                             ~       i
                                                                                   0         ~          r                ~




                                                                                                                                             rQ
                                                                                                                                                                                                                                                                                .-

                                              SEE NOTE-'"
                                                                                                                                @
                                                                                                                                             I
                                                                                                                                             I
                                                                                                                                             I

                                                                                                                                                         oPTIONAL
                                                                                                                                                         ALAR ..
                                                                                                                                             I
                                                                                                                                @            I
                                                                                                                                             I
                                                                                                                                             I
                                                                                                                                             (I'
     !!IIt'.'ir:;

                                                                                             .                                               I
                                                                                                                                             I
                                                                                                                                             I
                                                                                                                                                                                 @,
                                                                                             ~                                                                                   40&      I
                                                                                                                                             I                         .1U NOTE-I I
                                                                                                                                                                OPTIONAL                  L
                                                                                                                                             I
                                                                                           ~""lIIf                                                         e!JPl',TTEA
                                                                                                                                             I
                                                      @                                                                                      I
                                                                                                                                             I
                                                                                                                                             I


                                                                                                                                    ..
                                                                                                                                             I
                                                                                       qED       'it                                        I
                                                                                                                                     -       I




                                                                                           /t
                                                                                                 f(L,.6,1'o                                  I
                                                                                                                                    i _..JI
                                                                           @

                                                                                                                              O.P.5ENO(R
                                                      ~R'"       ~.

                                                                                                                                    @
                                                      :ORN   -'I'>
                                                                                                        -,    I 'OAt.
                                                                                                              Il!E      '-Ion:-c.
                            (                                                                           _J
                            I
                            I                                                                                                             RO -,.

                            L
                            I ____            ~~~     ____            ~        _       ___ _ _ ________ .1t.!.                                                 ~T.!.;!...   _ _ _ _ _ _ .....



                                                                                                                 CHART FOR STAPTEP MOTORS                                                     AND         HEATEPS

                                                                                                                                                        WIRING        INSERT                                                            NIRINC;   INSERT

                                                                                                                                                                                                                                   r-----------,
                                                                                                                                                                                                                                  ~E=~~~l--J           NOT USoCD        I


                                Wi                                                          !)(     NOTE-A,                             [J]1 .....::ii.~-......,                           SEE NOTE-A                                                                , 5[[ Non-A
                                Iiltr":~                                   ri'r.~""C+-_"'_+                                             15I,j..:l.-,                               ....
                                                                                                                                                                                 ~zi:v"c.l.._... _           +                                                 ;;"r:~'~C+-_~   _+
                                I5J                                                                                                        I ~T                                                                                                                             5.''
                                                                                                                                                            I
                                              m~'!'                                 5WI-,                                                                                                       5'-"-1
  ..;f:"'-:"ERBfr'.:- 3 <                 I                                                             W(5 TERSE"E 60                      I                                                       wqTERSE"E 80
 ('.')I2140       FORK           SHIFTING ASSE~BLY                                   1
 16      22141         ROD            SHIFTING                                            1
 17      22141         PLUG                                                               1
 18      22210         SEAL           RING                                                2
 19      ('2191        DIPSTICK       VENT ASSEMBLY                                       1
 20      22205         SCREW          LOCKING                                             1
 21      22211         CAPS CREW      M8X90 DIN 931 VCAD                              10
 22      22205         NUT            HEX M8 DIN 934 VCAD                              8
 23      22146         a-RING                                                          1
 24      22142         SHAFT          GEAR, INTERMEDIATE                               1
 25      23486         PJISC          STARTPJG                                         2
 26      22143         GEAR           INTERMEDIATE, TEETH-25                           1
 27      22145         BEARING        NEEDLE TWIN CAGE                                    1
 28      22181         GASKET                                                             4
 29      22207         GASKET                                                             1
 3C      22199         SEAL            RING                                               1
 31      22186         BEARING         TAPER, ROLLER ASRG                                 4
 32      :'21=0        BEARING         TAPER, ROLLER INTL                                 4
 33      22149         SHAFT           INPUT, TEETH-22/22                                 1
 34      22201         WASHER          0.1 MM                                             2
 35      22202         WASHER          0.2 MM                                             2
 36      22203         WASHER          0.5 MM                                             2
 37      22204         WASHER          1.0 MM                                             2
 38      23508         NUT             f;ROOVED                                           1
 39      22185         DISC            FITTING                                            1
 40      22181         DISC                                                               2
 41      221117        GEAR            TEETH-47                                           1
 1t2     22165         BEARING         NEEDLE CAGE                                        2
 1t3     221~6         RING            NEEDLE BEARING                                     2
 44      221 =7        SPACER                                                             2
 1t5     22151t        SPRING         CUP                                                 4-
 46      22155         DISC           PRESSURE                                            2
 47      22164         RING           SNAP                                                2
 48      22152         SHEET          STRIP, LAMINARY, INNER                              8
 49      22163         SHEET          STRIP, LAMINARY, OUTER                              -




                                                                                    235
           WESTERBEKE   ~O   - SHORT PROFILE SAILING GEAR-MODEL 10




      o
      '"


                                                                            /~




                                                                  ,              \
                                                                 ~ \.
                                                      \JJ-'~iCM~.,

                                                                 ~\
                                                                      \   ------
                                                         4J.~3~\~




                                 ~---'I/




236
             WESTERBEKE     5~   - SHORT PROFILE SAILING GEAR-MODEL 10


REF         PN       NAME           ~EMARKS                              QUAN

 50.        22158    WASHER         0.4 MM                                     2
 51         221~9    WASHER         1).5 MM                                    2
 52         221"0    WASHER         0.6 ~M                                     2
 53         221~1    WASHER         0.7 MM                                     2
 54         22112    PIN                                                       2
 55         22177    CARRIER        STRIP SHEET                                2
 56         221/S9   BALL                                                      6
 51         22174    SOCKET         GUIDE                                      1
 5&         22176    SOCKET         ceNTRaL                                    1
 51?        22170    SPRING         PRESSURE                                   3
 60         ?2171    PIN            STOPPINt;                                  3
 61         22173    PIN            DRIVING                                    :3
 62         2217'5   SPRING         TORSION                                    3
 63         22153    r. EAR         TEETH-43                                   1
 64         22182    SHAF T         OUTPUT                                     1
 65         22183    KEY            FITTING                                    1
 66         22180    SEAL           RING                                       1
 67         22168    SHIFTING       ASSEMBLY-REF 54 THRU 62                    1
 68         22152    GEAR           ASSE~BLY-43 TEETH                          1
 69         221'6    GEA R          ASSEMBLY-47 TEETH                          1
 70         22151    SHAFT          OUTPUT-COMPLETE ASSEMBLY                   1
 80         18360    GEAR           COMPLETE TRANSMISSION 2 TO 1               1
 90- 1      23C,79   COUPLING       EORED 3/4                                  1
 9C- 2      23680    COUPLING       BORED 1/8                                  1
 9C- :3     23581    COUPLING       80RED 1                                    1
 90-   4    236132   COUPLING       BORED 1-1/8                                1
 90-   5    2~683    COUPLING       BORED 1-1/4                                1
 90-   :,   23684    COUPLING       BORED 1-3/8                                1
 90-   7    23685    COUPLING       BORED 1-1/2                                1
 91- 1      23450    SCREW          COUPLING-23679,23680 & 23585               2
 91- 2      23652    SCREW          COUPLING-236B1 & 23682                     2
 91- :3     23651    SCREW          CQUPLING-23683 & 23684                     2
 95- 1      23449    KIT            SHIFTING BRACKET                           1
 95- 2      22322    BRACK~T                                                   1
 95- 3      13325    CLAMP                                                     1
 95- 4      13870    SHIM                                                      1
 95- 5      19364    BALL JOINT                                                1
 95- 6      13630    CAPSCREW       M8 X   25                                  2




                                                                         237
I\)
VI
(Xl




               o
               ::0
               ::r>
               :::E
               z
               ~

               :z                                                           32                                                                  11:
               C>                                                                                                                               P1
                                                       1)                                                                                       (I)
                                                                                                                                                -4
               w                                                                                                                                rr1
               ~
                                          10                                                                                                    :%I
                                                                                                                                                !D
                ~                                                                                                                               P1
                                                                                                                                                ::0:
                                                                                                                                                rr1
                            5",.
                                                                                                                                                JI
                                                                                                                                                ,~

                        63 _____ _                                                                         26
                                                                                                       ./              18-2
                                                                                                      ./                                        -4
                                                                                                                2-2                             -<
                                                                                                                                                "U
                                                                                                                                 84             rr1
                                                                                                                                 /1
               37
                                                                                                                           .,/   ,.             (I)
                                                                                                                                                1>
                                                                                                                                                o
               22 __       ~

                                                                                                                                                ~
      1                                                                                                                                         1>
                                                                                                                                                Z
                                                                                                                                        77      C
                                                                                                                                                1>
                                                                                                                                                r
                      IlL
               35~f&lig
                                                                                                                                                -4
                                                                                                                                                :%I
                                                                                                                                                1>
                                                                                                                                                Z
                      57                                                                                                                        (I)
                                                                                                                                                3:
                                                                                                                                                .....
                                                                                                                                                (I)
          42                                                                                                                          ''---78   (I)
                   47                                                                                                                           .....
                                                                                                                                                a
                                                                                    /        8                                                  z
          46                                                                    I
                                                                            /
                                                    I \ I \ 1\             88
                                                                                                                             i
                                                45 \        54   '\   49                                              76     \
                            7                          \                                                        74         80
                                                                 48                     85            71
                                     62        56    44                                          72
                     ~ESTER8EKE    50 - TYPE SAO MANUAL   TRANS~ISSION



kEF        PN          NAME          REMARKS                             !WAN

  1        14894      GEAR            E~.IGlrJE                                1
  2- 1     14857       TAILSHA~T      REVERSE GEAR                             1
  2- 2     14858      TATLSHAFT       RE'VERSE GEAR                            1
  2- 3     14899      TAILSHAFT                                                1
  3        14891      HOUSING        REVERSE GEAR                              1
  4        148~g      GA'S'

Ad by Google

Disclaimer:
The information on this web site has not been checked for accuracy. It is for entertainment purposes only and should be independently verified before using for any other reason. There are five sources. 1) Documents and manuals from a variety of sources. These have not been checked for accuracy and in many cases have not even been read by anyone associated with L-36.com. I have no idea of they are useful or accurate, I leave that to the reader. 2) Articles others have written and submitted. If you have questions on these, please contact the author. 3) Articles that represent my personal opinions. These are intended to promote thought and for entertainment. These are not intended to be fact, they are my opinions. 4) Small programs that generate result presented on a web page. Like any computer program, these may and in some cases do have errors. Almost all of these also make simplifying assumptions so they are not totally accurate even if there are no errors. Please verify all results. 5) Weather information is from numerious of sources and is presented automatically. It is not checked for accuracy either by anyone at L-36.com or by the source which is typically the US Government. See the NOAA web site for their disclaimer. Finally, tide and current data on this site is from 2007 and 2008 data bases, which may contain even older data. Changes in harbors due to building or dredging change tides and currents and for that reason many of the locations presented are no longer supported by newer data bases. For example, there is very little tidal current data in newer data bases so current data is likely wrong to some extent. This data is NOT FOR NAVIGATION. See the XTide disclaimer for details. In addition, tide and current are influenced by storms, river flow, and other factors beyond the ability of any predictive program.
