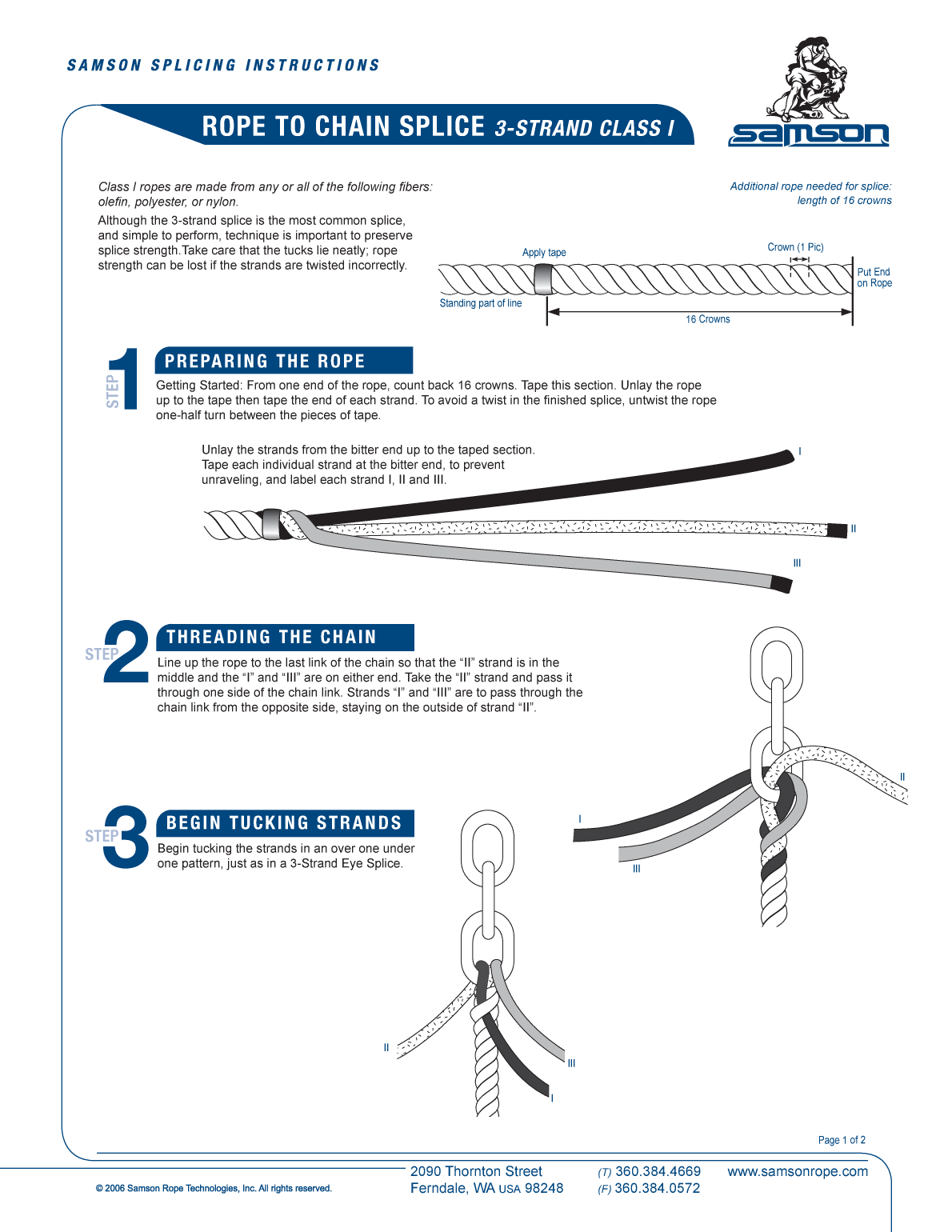

Rope to chain splice 3strand Class I
Class I ropes are made from any or all of the following fibers Additional rope
needed for splice
olefin polyester or nylon
length of 16 crowns
Although the 3strand splice is the most common splice
and simple to perform technique is important to preserve
splice strengthTake care that the tucks lie neatly rope Crown 1
Apply tape
strength can be lost if the strands are twisted incorrectly
Put End
on Rope
Standing part of line
16 Crowns
1 p r e pa r i n g t h e r o p e
step
Getting Started From one end of the rope count back 16 crowns Tape this section Unlay the rope
up to the tape then tape the end of each strand To avoid a twist in the finished splice untwist the rope
onehalf turn between the pieces of tape
Unlay the strands from the bitter end up to the taped section I
Tape each individual strand at the bitter end to prevent
unraveling and label each strand I II and III
step
threading the chain
Line up the rope to the last link of the chain so that the II strand is in the
middle and the I and III are on either end Take the II strand and pass it
through one side of the chain link Strands I and III are to pass through the
chain link from the opposite side staying on the outside of strand II
3 begin tucking strands I
step
Begin tucking the strands in an over one under
one pattern just as in a 3Strand Eye Splice III
Page 1 of 2
2090 Thornton Street T 3603844669 Ferndale WA USA
98248 F Rope to chain splice 3strand Class I
4 tucking the strands
With strands I and III tucked once 4A turn splice over
to tuck strand II 4B
II III
step
Perform 4 more complete tucks with all 3 I
strands Tighten tucks if necessary
Front of finished splice
Back of finished splice
NOTE This method of joining rope and chain is
designed to minimize chafe between rope
and chain but as a matter of prudent
seamanship it should be checked regularly
and remade if there is any evidence of wear
Page 2 of 2
